Blackbird Leys Swimming Pool, Oxford

Blackbird Leys Pools and Leisure Centre, Oxford

Standing Seam Roof and Wall Cladding, Timber Cladding over Composite Wall Panel, Curtain Walling and Rooflights.

SCF were involved in the design, procurement and site management of the external cladding works inclusive of roof and wall cladding, curtain walling and rooflights. The standing seam was site welded to create the accute angle to the front of the building and creates an extremely crisp aesthetic which is best noted on the aerial view of the building.

Roofing and Cladding Package inclusive of Curtain Wall And Rooflights

Client: Fusion Lifestyle for Oxford City Council

Main Contractor: Willmott Dixon

Architect: Faulkner Browns

Engineer: Hoare Lee

Steel Contractor: Adstone Construction Ltd.


Project Value



Roofing and Cladding Contract Value: Circa £760k

MEWPS and Roof Edge Protection

Building Height: 9m


Access Strategy:

- Low Level MEWPS and Cherry Pickers

- Roof Edge protection and Haki Stair Access

On-site Cranked Sheet Welding

The geometry of the building and the acute angles of the sheets meant the cladding was installed as front and rear welded panels with straight sheets running across the length of the roof. The Cranks were created at ground level where they could be set into a template and we could quality control the weld. The sheets were then welded on to the main roofsheet once lifted into position, a straightforward weld that permitted the crisp appearance of the building we have today to be achieved.

Products

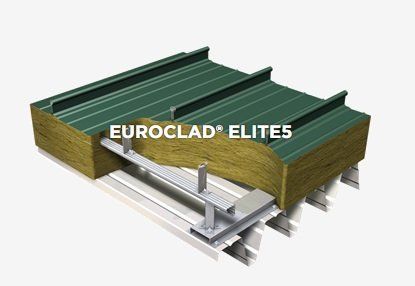

Euroclad ES400 Roof and Wall System

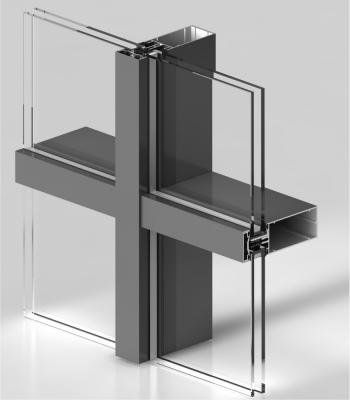

Schueco Curtain Walling
Schueco Roof/Wall Lights

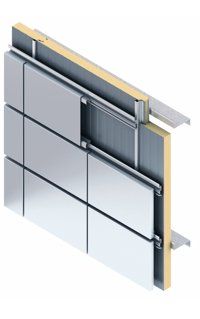

Kingspan Benchmark

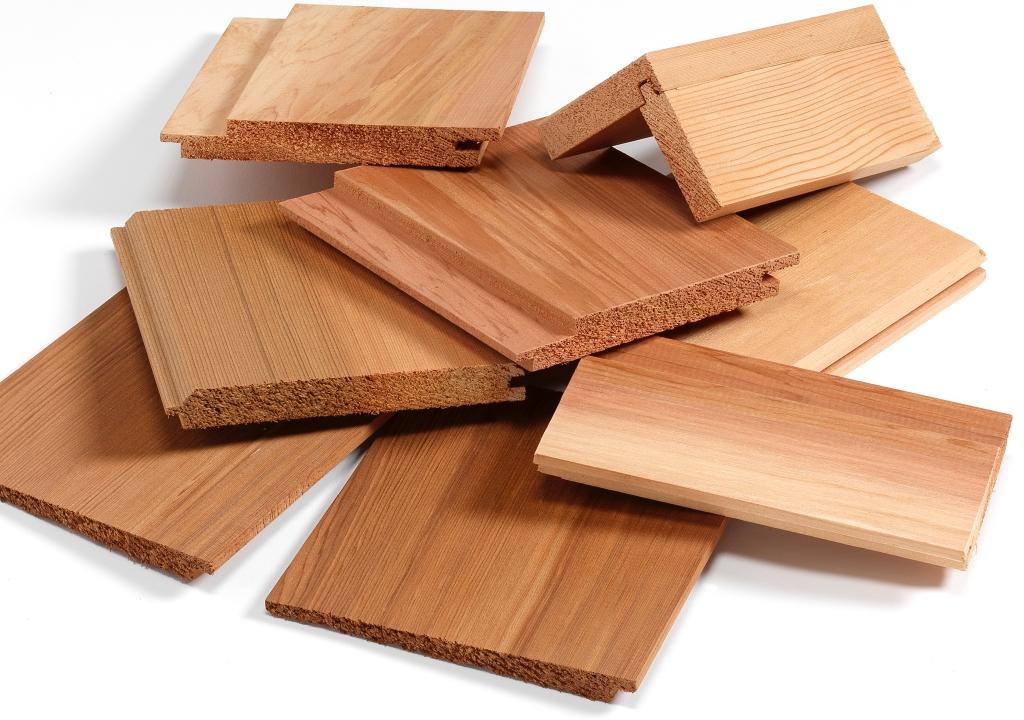

Red Cedar Cladding
