Ferrybridge FM2, Yorkshire

Ferrybridge FM2, Knottingley

Trapezoidal Wall Cladding and Standing Seam Roofing for a Multifuel Power Station

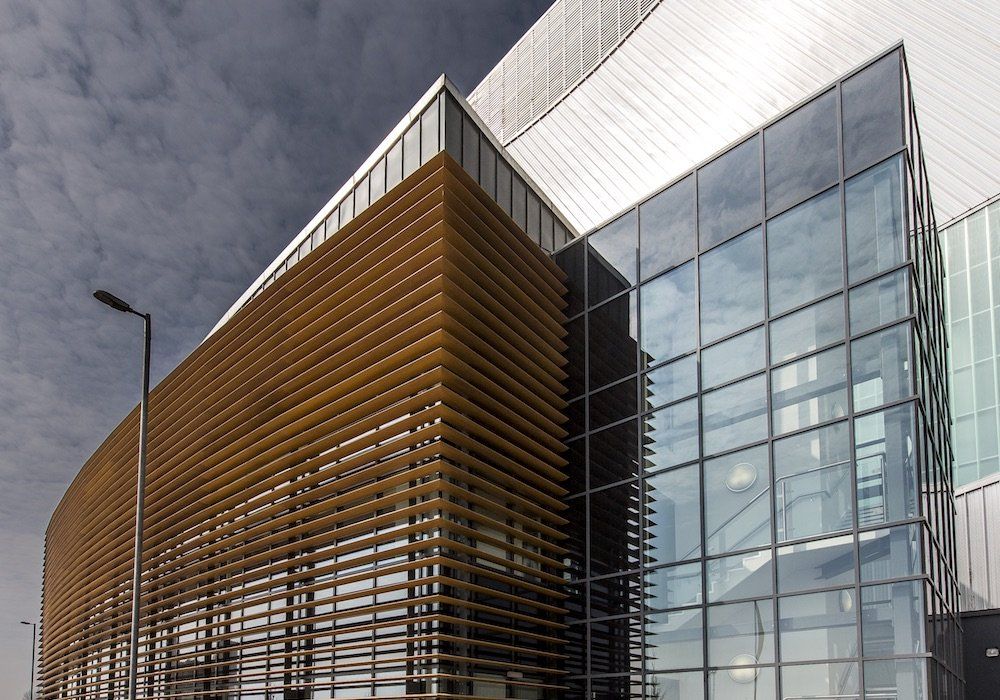

SCF were involved in the design, procurement and site management of the external cladding works inclusive of curtain walling and polycarbonate wall lights, internal firewalls and secret fix and standing seam roofing with polycarbonate rooflights. The scale of the building was an incredible challenge along with the sequencing of the works to satisfy the extensive M&E package. The wall construction was a mix of horizontal and vertically laid trapezoidal wall sheets interspersed on the administration block by curtain walling and ribbon windows. The roofs were predominantly steel SF500 secret fixed roof sheets, with a number of large and complex penetrations.

Roofing and Cladding Package inclusive of Internal Dustwall and Firewall

Client: SSE

Main Contractor: Hitatchi Zosen-Inova

Architect: Weedon Architects

Engineer: WSP

Steel Contractor: Severfield/Poetzche


Project Value



Roofing and Cladding Contract Value: Circa £3.1m

Dust Wall Variation: Circa £40K


Building Height Implications

Building Height: 50m


Access Strategy:

- Low Level MEWPS and Cherry Pickers

- High Level Cradle Access

- On Roof Access by Aluminium Tower

Products

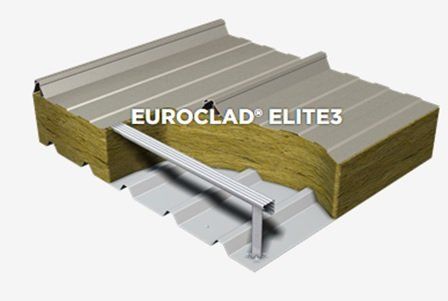

Euroclad SF500 Roof System

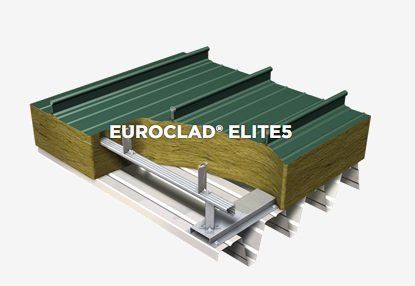

Euroclad ES400 Roof System
System Building Products 32/1000 Wall Cladding
Schueco Curtain Walling

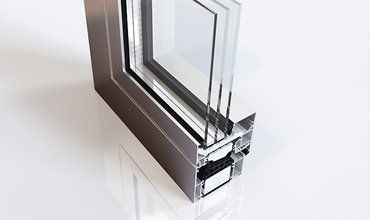

Schueco Windows

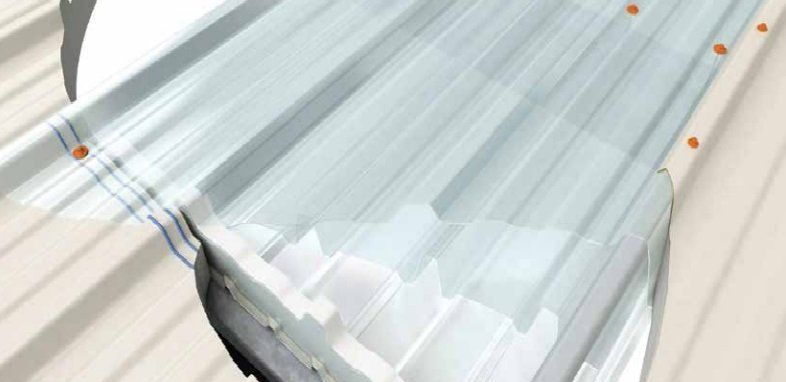

Brett Martin Rooflights
Hambleside Danelaw Wall Lights
Paroc Fire Panels
