Western Police Custody Suite, Dudley

Standing Seam Roof and Walls, Kawneer Curtain Walling, Velux Rooflights, Solatube Sun Pipes and Brise Soleil.

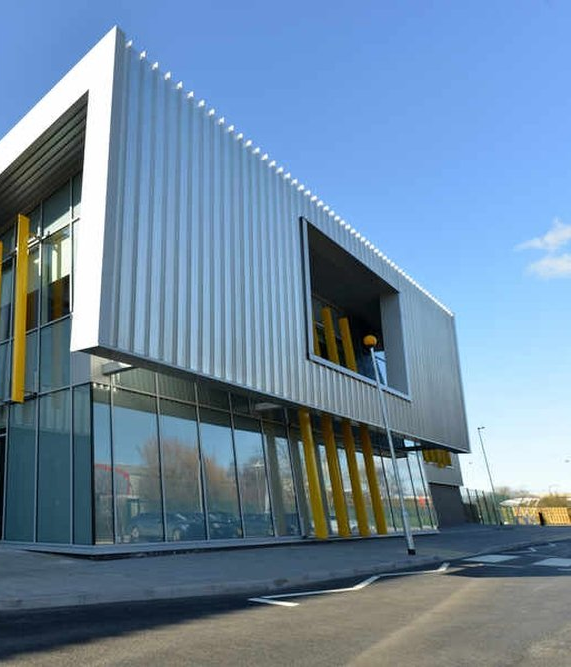

SCF were involved in the design, procurement and site management of the roofing and wall cladding works at Western Police Custody Suite, inclusive of curtain walling and brise soleil. The roof and wall sheets were fabricated at ground level and lifted into position to achieve the regular sharp edge crank detail seen at both the front and rear of the building.

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Roofing and Cladding Package inclusive of Curtain Wall and Brise Soleil

Client: West Midlands Police

Main Contractor: Willmott Dixon

Architect: Archial | Norr

Engineer: -

Steel Contractor: MJ Robinson

Project Value

Roofing and Cladding Contract Value: Circa £770K

MEWPS and Roof Edge Protection

Building Height: 12m

Access Strategy:

- Low Level MEWPS and Cherry Pickers

- Roof Edge protection and Haki Stair Access

Site Formed Cranked Welding

The geometry of the building and the acute angles of the sheets meant the cladding was installed as front and rear welded panels with straight sheets running across the length of the roof. The Cranks were created at ground level where they could be set into a template and we could quality control the weld. The sheets were then welded on to the main roofsheet once lifted into position, a straightforward weld that permitted the crisp appearance of the building we have today to be achieved.
