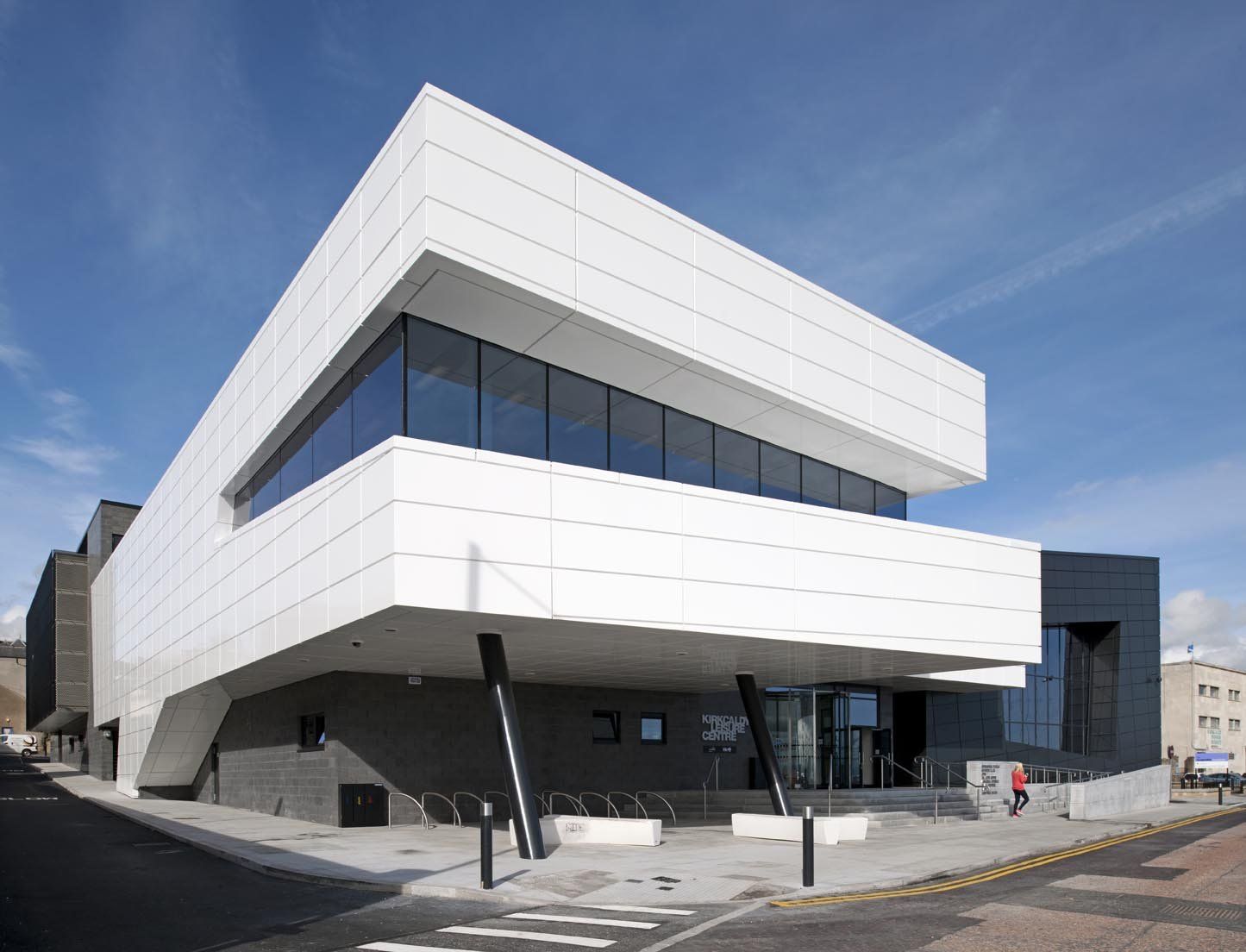

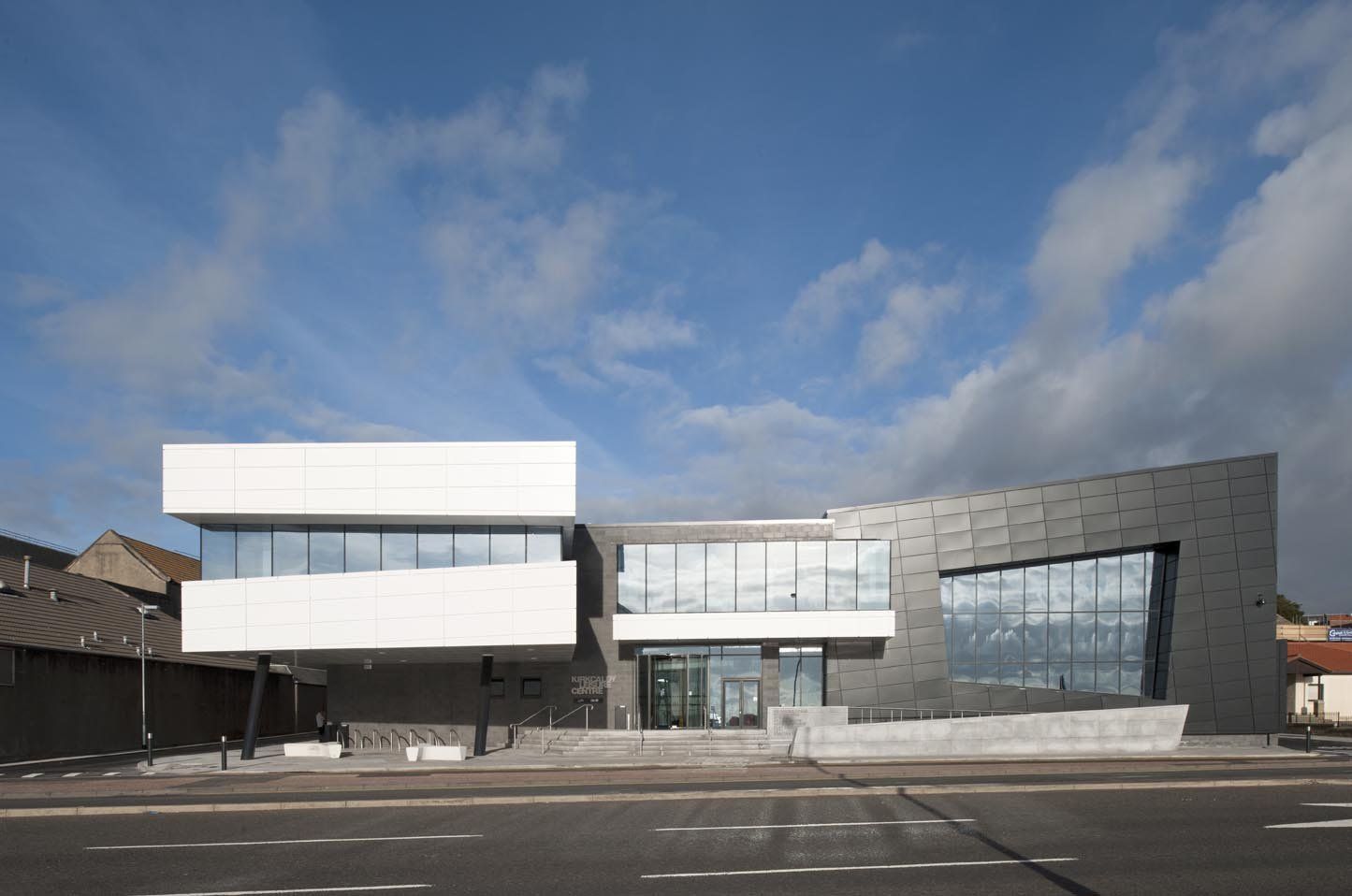

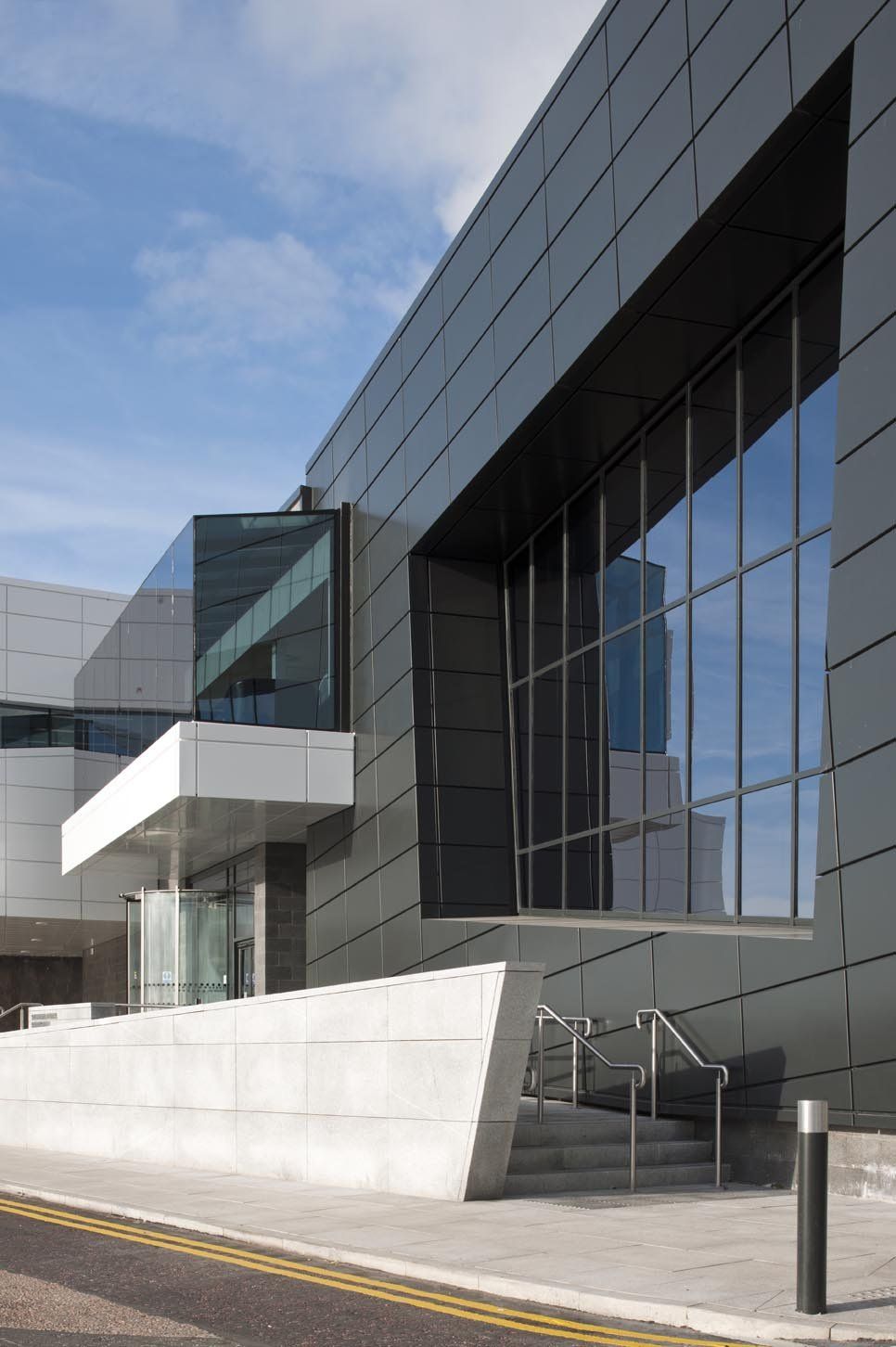

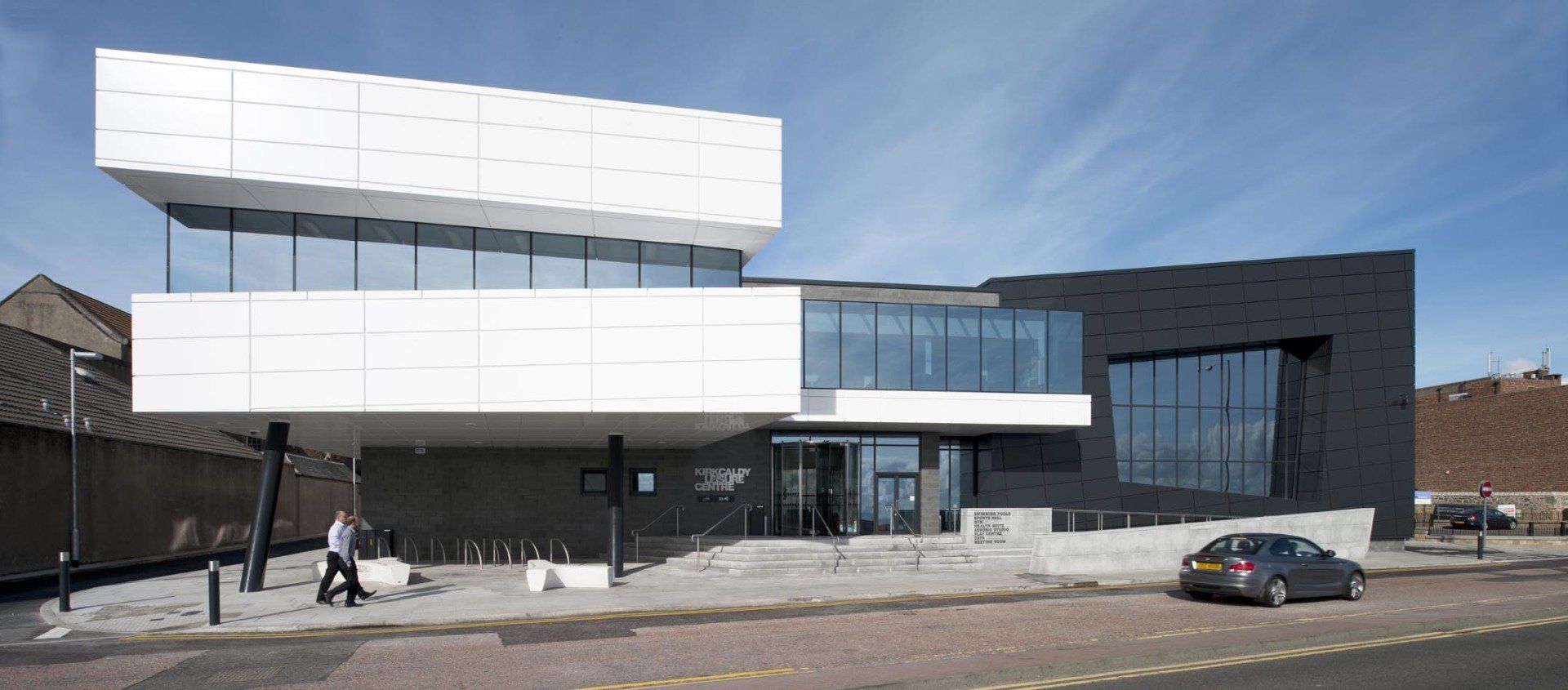

Kirkcaldy Leisure Centre, Kirkcaldy

Euroclad Standing Seam Roof, Icopal Membrane Roof, Paroc Wall Cladding Panels Overclad with Trespa with GKD Mesh Over and CGL Aluminium Wall Cladding Panels.

SCF were involved in the design, procurement and site management of the external cladding works inclusive of roof and wall cladding.

Roofing and Cladding Package inclusive of Mesh

Client: Fife Sports and Leisure Trust

Main Contractor: Graham Construction

Architect: Cre8 Architecture and B3 Architects

Engineer: Arup

Steel Contractor: Walter Watson


Project Value




Roofing and Cladding Contract Value: Circa £1.8m

MEWPS and Roof Edge Protection

Building Height: 12m


Access Strategy:

- Low Level MEWPS and Cherry Pickers

- Roof Edge protection and Haki Stair Access

Support of Mesh due to Excentricity of Loading Caused by Cantilever to Accommodate Cladding Zone

There were a number of concerns raised over the support of the mesh to the rear and side elevations of the building due to the proximity to the coast and the potential ice and snow loadings. The Mesh sat around 500mm out from the face of the steel and there were concerns over the capacity of the Paroc Panels and Nvelope Bracketry to support such loads. With the appointment of our own Structural Engineer we were able to determine the most appropriate solution to return the mesh to the structural frame. This also ensured a full through-wall calculation for the independent elements of the wall construction were checked and the client had peace of mind given the bespoke nature of the installation.

Products

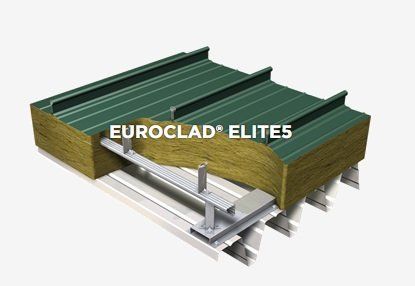

Euroclad EC400 Standing Seam Roof
Icopal Membrane Roof

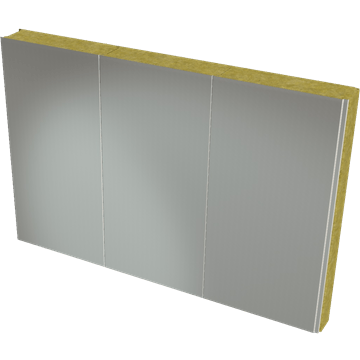

Paroc Insulated Wall Cladding Panels
Trespa Meteon Cladding Panels
CGL Aluminium Cladding Panels
GKD Mesh
