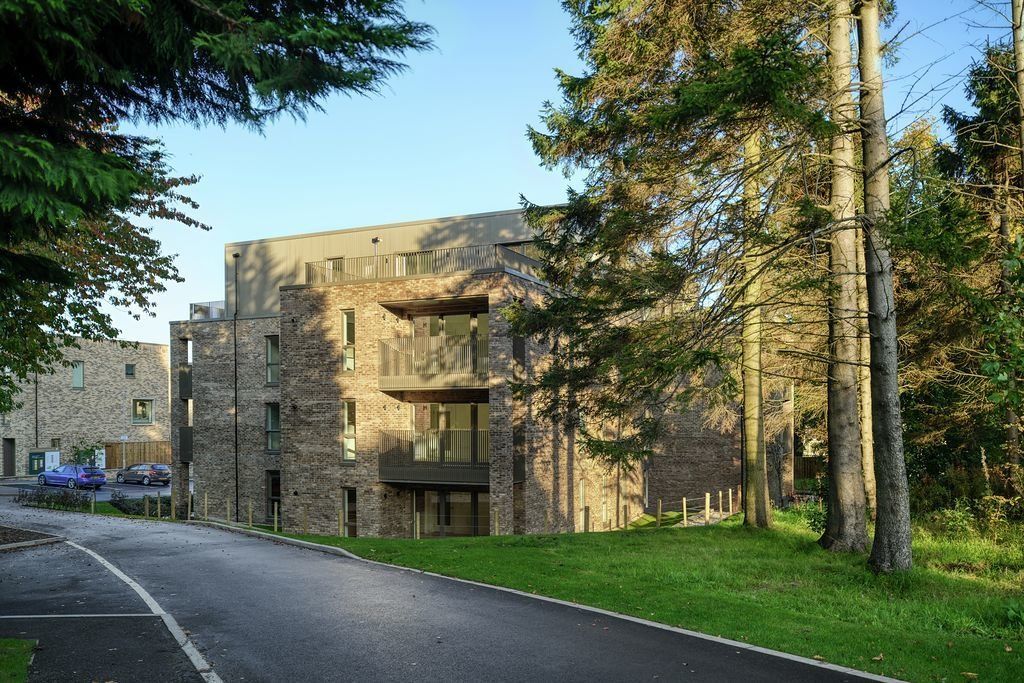

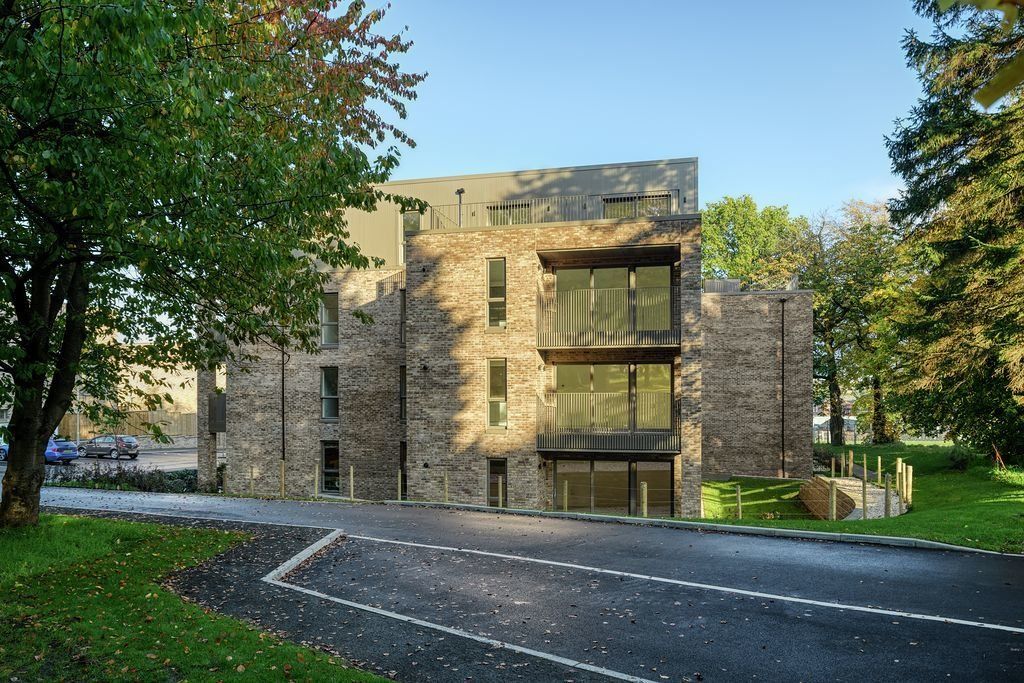

Jordanhill Campus Redevelopment Apartments, Glasgow

Norbo Cladding Panels and associated Aluminium Flashings with Aluminium Secret Fixed Soffits

SCF were involved in the design, procurement and site management of the external cladding works inclusive of wall cladding and balcony soffits. The 100mm wide Norbo Planks create an iconic industrial looking rhythm to the penthouse level of the building.

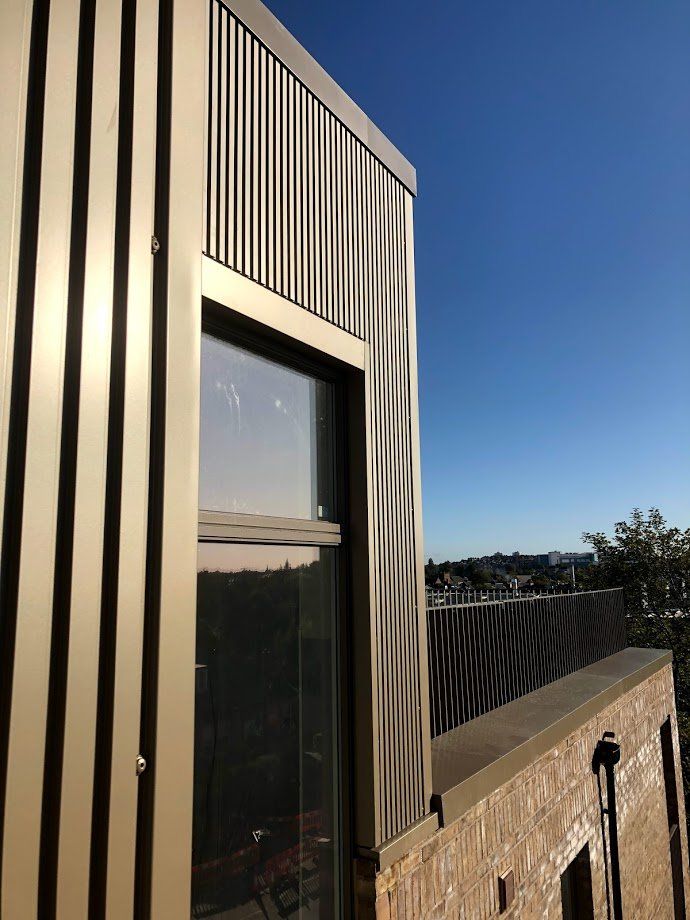

Penthouse Cladding and Terrace Soffit Cladding

Client: CALA Homes (West)

Main Contractor: CALA Homes (West)

Architect: 7N Architects (Photo Credits)

Engineer:  Goodsons

LWSF Contractor: Sigmat


Project Value


Cladding Contract Value Circa £450k to date

Scaffold Access

Building Height: Circa 12m


Scaffold Access Provided by Main Contractor

Design to Minimise Site Sizing Requirements

The first project blocks were designed with site measured flashings fitted to the profile of the Norbo plank. The site measure was required due to the very minimal tolerance permitted within the profile of the planks. When looking to Phase 2, the programme requirements for the intial blocks could be tightened with a limit to the site sizing. By using external flashings oversailing the Norbo Profile at Opening Jambs and Corners we were able to ensure all materials were available on day 1 to achieve weathertightness and completion of elevations on our own timetable without having to wait for site measures to be taken.

Products

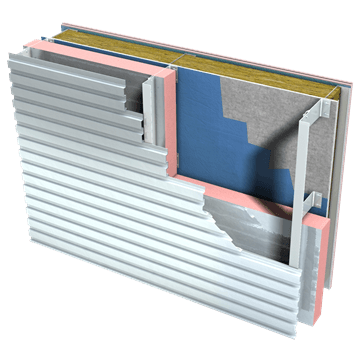

Booth Muirie Norbo 100mm  Cladding Planks

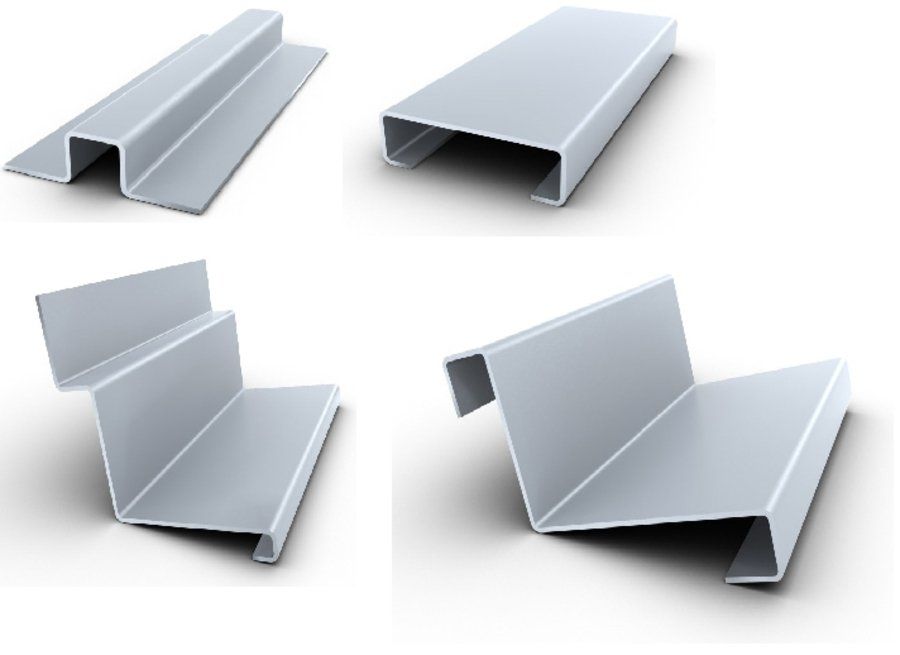

BD Fabrications PPC Aluminium Flashings
Safab PPC Aluminium Soffit Planks
